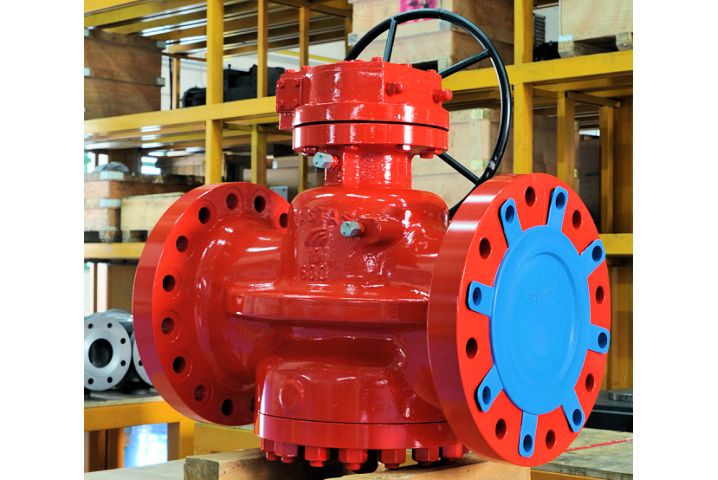

E100 - Pressure Balance Plug Valve.
A Plug Valve is an auxiliary valve used in opening and throttling of high pressurized systems. It is used as a bypass to the line valve; it balances the pressure and provides safe opening of line valve.
Plug valves have a conical or cylindrical obturator rotating around the axis perpendicular to the flow direction.
Advastas Plug valves are produced in compliance with API 6D standards. Special products are also available for high temperature & pressure services.
E100 Features
Available size 50mm(2") to 750mm(30")
Available rating Class 150 - 2500LB
Aboveground,Underground
Short Pattern, Regular Pattern & Venturi Pattern
Operational easiness by quarter turn motion,
Laminar flow,
Applicable maintenance by field service even for welded types,
Suitable for underground services,
Remote control and/or automatic emergency operation upon request.(Electric, Gas, Air, Hydraulic, etc.)
Standards
Designed and approved as per API 6D, ISO 14313,
Design criteria ASME B16.34,
Welding end dimensions ASME B16.25
Flange end dimensions ASME B16.5, B16.47
F to F and E to E dimensions ASME B16.10
Operators
Lever Operated
Gear Operated
Electric Actuator
Gas Over Oil Actuator
Spring Return Actuator
Application
E100 Plug valves can be suitable for Water, Renewable, Fuel and Marine Offshore applications.
