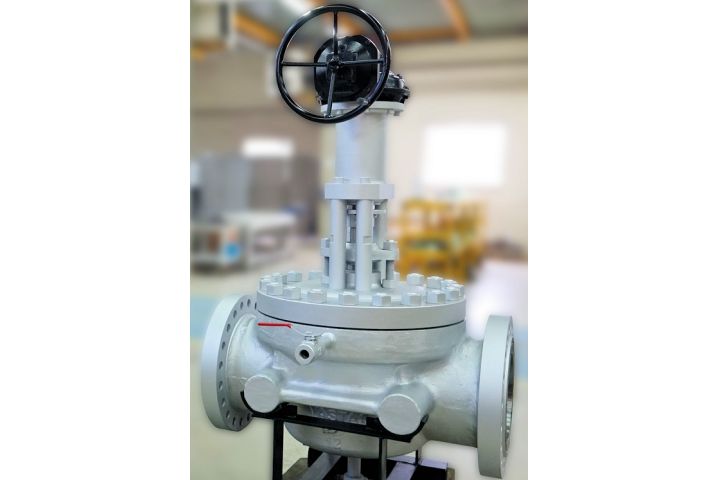

E10D - Wedge Plug Valve.
E10D Wedge Plug Valves are non-lubricated type. In order to avoid the high torque because of metal to metal compaction, the plug has rising-rotation and descending movements.
They are used for liquids that may become solid like latex and tar. Body-flushing treatment is done after the operation period.
E10D Features
Available size mm(6") to mm(24")
Available rating Class 150 - 600LB
Aboveground
Inverted Type
Lubricated
Operational easiness by quarter turn motion
Laminar Flow
Standards
Designed and approved as per API 599
Design criteria ASME B16.34,
Socket weld end dimensions ASME B16.11
Threaded NPT end dimensions ASME B1.20.1
Welding end dimensions ASME B16.25
Flange end dimensions ASME B16.5
Operators
Lever Operated
Application
E10D Plug valves can be suitable for Water, Renewable and Marine Offshore applications.
For further information contact us by email , or by using the Contact Form |
