These types of valves are mostly forged steel. The body of the valve is constructed by welding of all parts except the stem housing. No sealing elements are used which might cause leakage through.
Compact Valves are produced with a steel body and stainless steel trim (API Trim no 8 as standard).
End fittings are designed as NPT according to ASME B1.20.1. Upon Customer request Advastas Compact valves can be produced with butt welded end according to ASME B16.25 or with socket welded end according to ASME B16.11
Flanged ends can also be produced in accodance to ASME B16.5. with Face to Face Dimensions in accordance with ASME B16.10.
When required it can be manufactured from special material according to NACE corrosion standards and/or temperature class.
Common Features:-
Compact and Light weight
Easy Assembly/Disassembly
East Maintenance
Inexpensive
Available Forged Valves
E604 Compact Forged Ball Valve

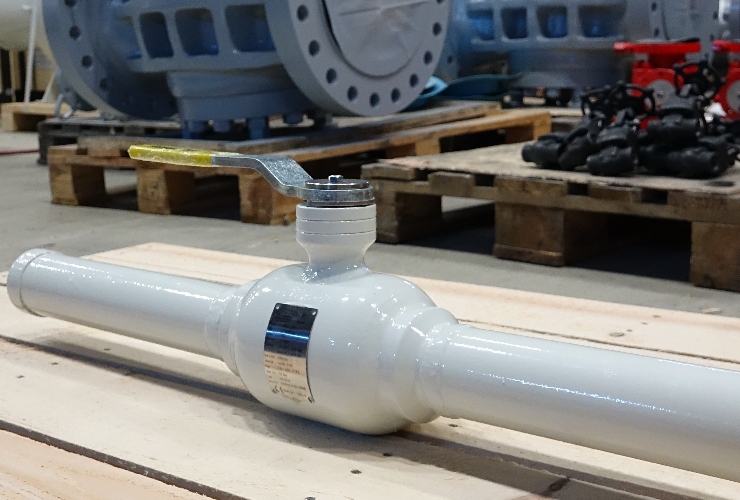

E60K Compact Forged Ball Valve

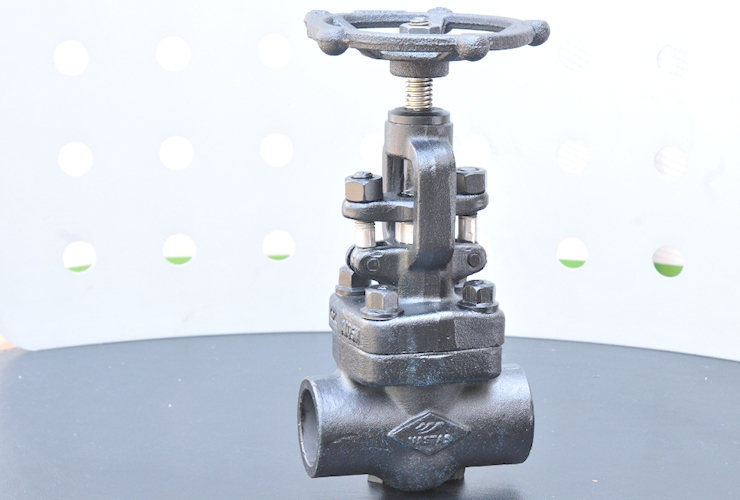

E504 Compact Forged Gate Valve
E505 Compact Forged Gate Valve

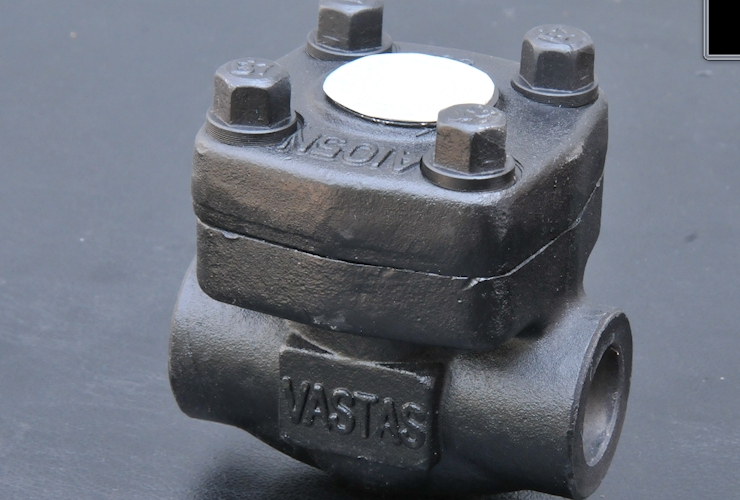

E404 Compact Forged Check Valve

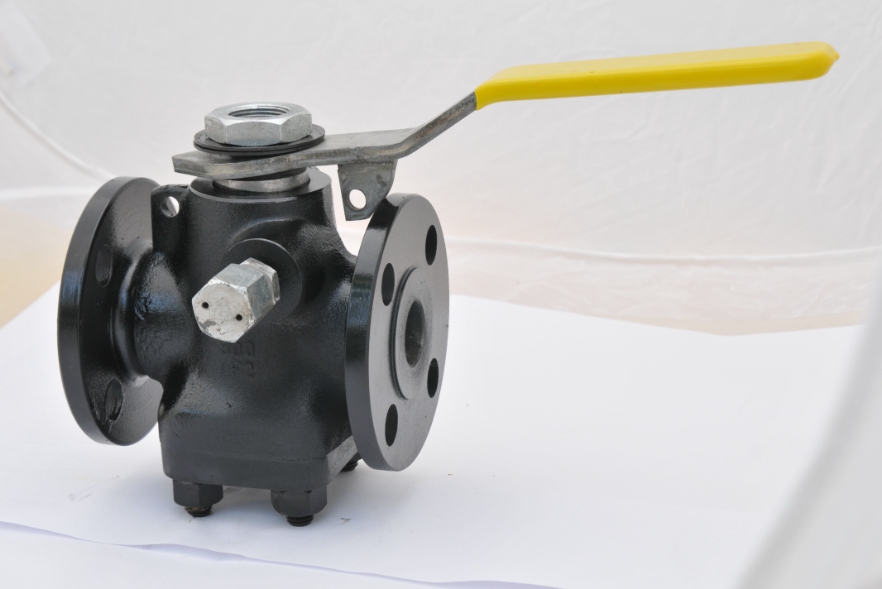

E104 Compact Forged Plug Valve

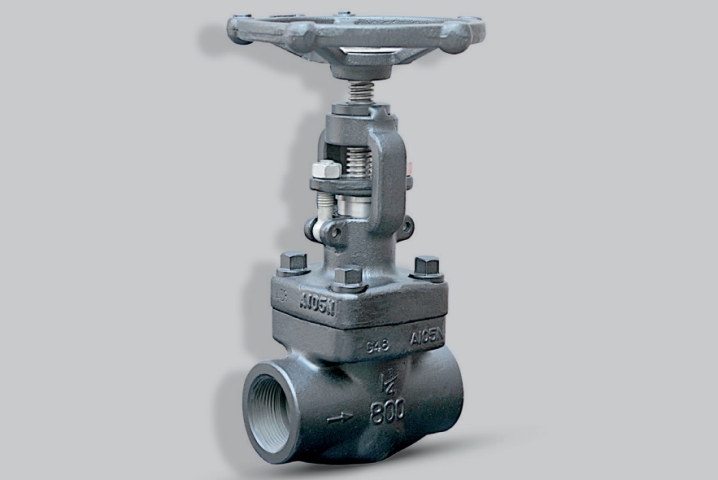

E304 Compact Forged Globe Valve
