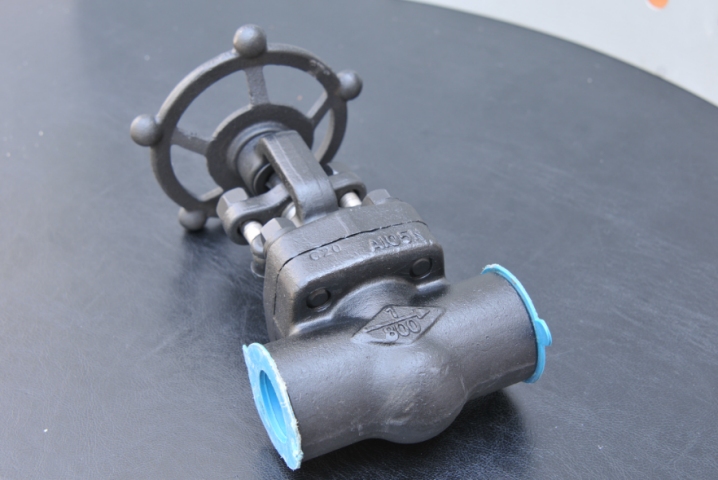

E504/E505 - Compact Forged Gate Valve.
E504/E505 is a closure valve. It is not suitable to be used to adjust/throttle the flow. If needed, Globe Valve should be used beside it.
If the Valve is required for regular open-close application, a Ball Valve is the preffered option.
E504/E505 Features
Available size 15mm(1/2") to 50mm(2")
Available rating Class 150 - 2500LB
Bolted Bonnet
Outside Screwed & Yoke
Rising Stem
Full Bore / Standard Bore
Socket weld, Threaded NPT, Butt Weld, FLanged (RF/RTJ)
Above Ground
Standards
API 602
BS5352
Operators
Manual (Handwheel) operated
Application
E504/E505 Compact Gate valves can be suitable for LNG, Water, Fuel, Renewable and Marine Offshore applications.
E504/E505 - Compact Forged Gate Valve
After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.
For further information contact us by email  , or by using the Contact Form
|
