E404 - Compact Forged Check Valve.
E404 is a non-return valve for general usage. It is used to prevent the pressure or flow repulse.
The design of the Check Valves, is the best one used in preventing back flow and can be operated between -29°C to 425°C degrees.
E404 Features
Available size 15mm(1/2") to 50mm(2")
Available rating Class 150 - 2500LB
Bolted Bonnet
Standard / Full Bore
Lift / Swing / Ball Type disc
NPT / Socket weld / Butt weld / Flanged End
Standards
Design API 602, ASME B16.34
NACE MR0175, MR0103
Welding end dimensions ASME B16.25
Socket weld end dimensions ASME B16.11
Threaded NPT end dimensions ASME B1.20.1
Flange end dimensions ASME B16.5
Operators
Self Acting
Application
E404 Compact Check valves can be suitable for LNG, Water, Fuel, Renewable and Marine Offshore applications.

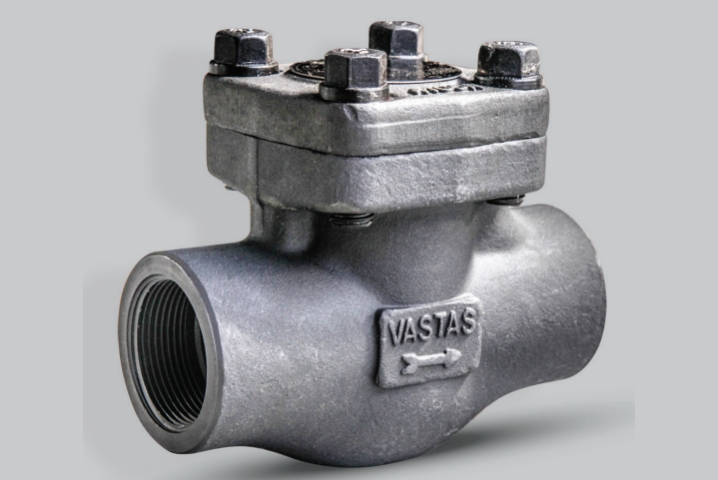

E404 - Compact Forged Check Valve
After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.
For further information contact us by email  , or by using the Contact Form
|
