E304 - Compact Forged Globe Valve.

E304 is used to adjust flow rate in the lines where high differential pressure occurs. It is not recommended as a closure valve.

If necessary a Gate Valve should be placed in front of it. If requested it can be designed as Globe-Check or Control Type Check Valve.

E304 Features
Available size 15mm(1/2") to 50mm(2")
Available rating Class 800LB
Bolted Bonnet
Outside Screwed & Yoke
Rising Stem, Rising Hanwheel
Full Bore / Standard Bore
Socket weld, NPT, Butt weld, Flanged End
Above Ground

Standards
Design API 602, ASME B16.34
NACE MR0175, MR0103
Welding end dimensions ASME B16.25
Socket weld end dimensions ASME B16.11
Threaded NPT end dimensions ASME B1.20.1
Flange end dimensions ASME B16.5

Operators
Manual (Handwheel) operated

Application
E304 Compact Globe valves can be suitable for LNG, Water, Fuel, Renewable and Marine Offshore applications.

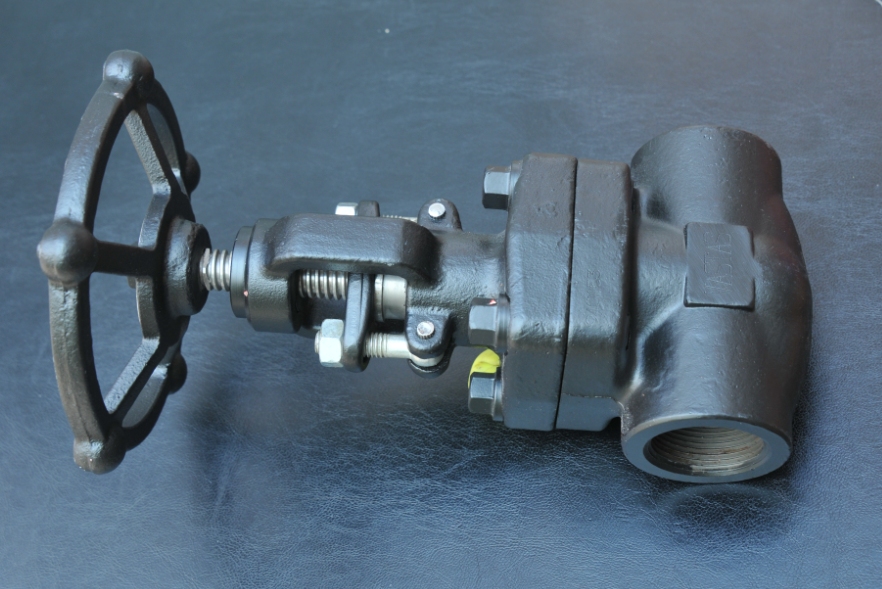

E304 - Compact Forged Globe Valve

After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.

For further information contact us by email  , or by using the Contact Form
