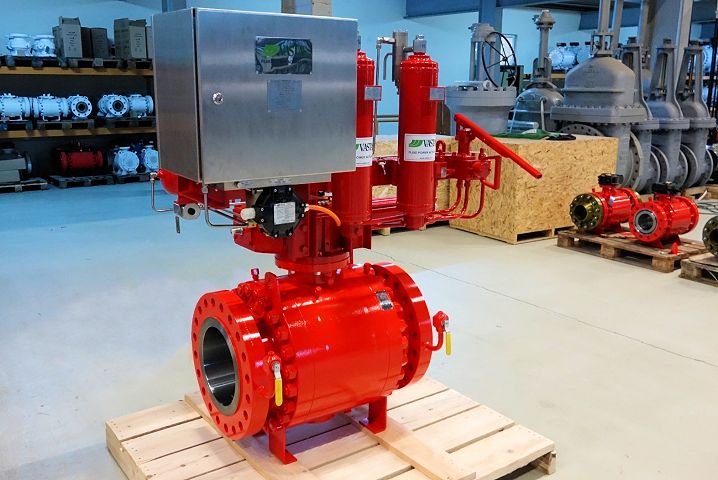

E601 - Split Body Ball Valve, Forged.
Split Body Ball valves are especially used as line valves in Natural Gas and Crude Oil Pipelines, Pig Stations, Compressor and Measuring Stations and Pressure Regulating and Metering Stations (RMS), Pumping Stations and Loading Terminals.
When required, they can be manufactured specially for Sea Water, Waste Water, Mineral Mud (Slurry). A wide range of materials is available; Carbon steel, LTCS, stainless steel (304/316/347), 22%Cr DSS, 25%Cr SDSS, 6Mo and Nimonics (e.g. Alloy 825 & 625). Project specification compliance for materials and testing, including NACE MR-01-75 / ISO 1556, is available where required.
E601 Features
Available size 50mm(2") to 1400mm(56")
Available rating ASME Class 150# - 2500#
Two or Three Pieces Split Body
Double Block & Bleed
Trunnion Mounted Ball
Anti Static Device
Full Bore or Reduced Bore
Fire Safe Design
Body Drain & Vent
Anti blow-out stem
Emergency Sealant Injection, (Stem & Seat)
Standards
Design API 6D, ISO 14313, ASME B16.34
Face to Face size ASME B16.10, API 6D
End Type, ASME B16.47 Series A & B & ASME B16.5
Fire safe valve design, according to API 607, API 6FA and ISO 10497
Operators
Lever Operated
Gearbox
Electric Actuators
Spring Return Pneumatic Actuators
Gas Over Oil Actuators
For further information contact us by email  , or by using the Contact Form
|
