E60M - Full Welded Ball Valve.

Fully Welded Ball Valves are commonly used in Natural Gas and Crude Oil pipelines, in underground and above ground installations. They are available in compliance with API 6D QSL-2 and higher quality levels upon request, including being Safety Integrity Level (SIL) certified.

Advastas supply fully welded ball valves manufactured from forged construction with housing components welded together, eliminating the need for sealing elements. The stem housing is bolted, to provide access to the stem seals for maintenance. Inspection and maintenance of such valves may be executed on live lines.

A wide range of materials is available; Carbon steel, LTCS, stainless steel (304/316/347), 22%Cr DSS, 25%Cr SDSS, 6Mo and Nimonics (e.g. Alloy 825 & 625). Project specification compliance for materials and testing, including NACE MR-01-75 / ISO 1556, is available where required.

E60M Features
Available size 50mm(2") to 1500mm(60")
Available rating ASME Class 150# - 1500#
Two or Three piece Forged Body
Double Block & Bleed
Trunnion Mounted Ball
Anti Static Device
Full Bore or Reduced Bore
Fire Safe Design
Body Drain & Vent
Anti blow-out stem
Emergency Sealant Injection (Stem & Seat)

Standards
Design API 6D, ISO 14313, ASME B16.34
Face to Face size ASME B16.10 & API 6D
Fire safe valve design, according to API 607,
API 6FA and ISO 10497 standards.
End Type, Butt weld, ASME B16.25

Operators
Lever Operated
Gearbox
Electric Actuators
Spring Return Pneumatic Actuators
Gas Over Oil Actuators

For further information contact us by email  , or by using the Contact Form

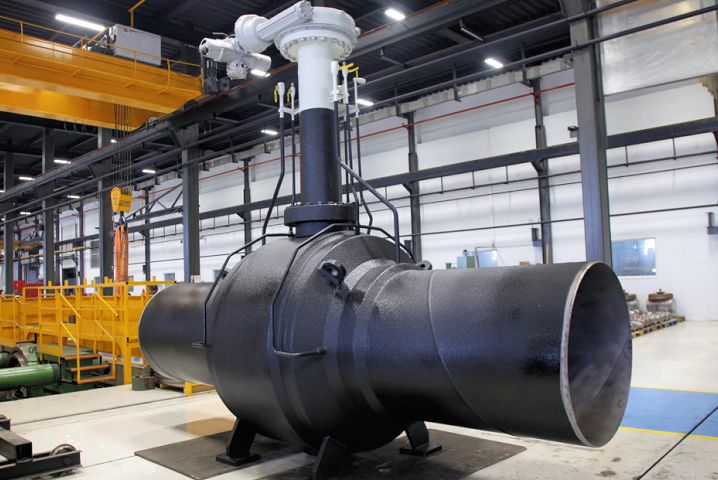

E60M - Full Welded Forged Steel Ball Valve

After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.
