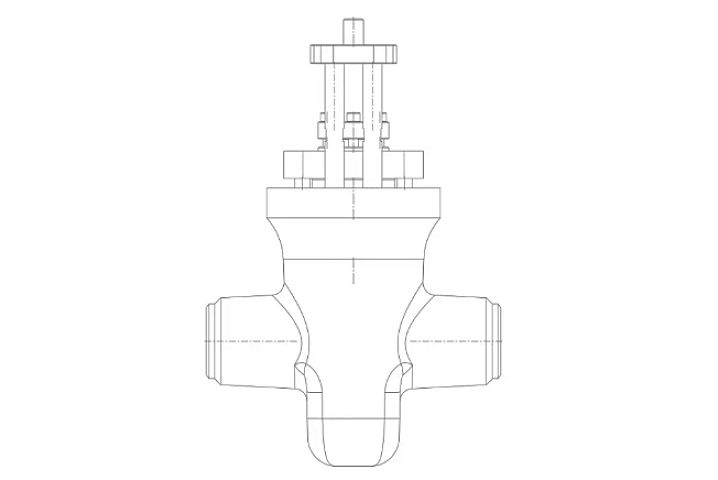

E50P - Through Conduit Gate Valve, Pressure Seal Bonnet.
E50P Gate Valve is Through Conduit type with Pressure Seal Bonnet and Weld End design.
E50P Features
Available size 100mm(4") to 600mm(24")
Available rating Class 900 - 2500LB
Pressure Seal Bonnet
Outside Screwed & Yoke
Rising Stem
Double Block & Bleed
Anti Static Device
Fire Safe Design
Full Bore
Standards
Design API 6D, ASME B16.34
Butt Weld End, End Type ASME B16.25
NACE MR0175, MR0103 (optional)
Test Standard API 598
Operators
Manual Operated (Handwheel or Gearbox)
Motor Operated (Rotork, Auma or others)
Pneumatic Actuators
Hydraulic Actuators
Application
E50P Gate valves can be suitable for LNG, Water, LPG, Renewable, Fuel and Marine Offshore applications.
E50P - Through Conduit Gate Valve, Pressure Seal Bonnet
After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.
For further information contact us by email  , or by using the Contact Form
|
