E500 - Cast Steel Wedge Gate Valve.

Wedge Gate Valves are commonly used as on-off and isolation valves in oil, gas, water, sea water and steam lines. They should be used fully open or fully close and not suitable for throttling.

Advastas Wedge Gate Valves are API 600 licensed and Safety Integrity Level (SIL) certified. They are used as pipeline valves, shut-off valves, isolation valves, drain valves, vent valves and service valves.

Wedge Gate Valves are produced with steel body and stainless trim (API Trim No 8 as standard), ends are flanged to ASME B16.5 & B16.47 with Face to Face Dimensions complying with ASME B16.10 standard.

E500 Features
Available size 50mm(2") to 1800mm(72")
Available rating Class 150 - 2500LB
Bolted Bonnet
Flexible Wedge
Outside Screwed & Yoke, Rising Stem
Fire Safe Design
Above Ground & Underground (only full confined packing)
Full Bore
Anti Static Device

Standards
Design API 600, ISO 10434, ASME B16.34
Face to Face size ASME B16.10
End Type ASME B16.5 & B16.47 RF/RIJ, (Series A, Optional Series B) ISO 7005 & ASME B16.25 BW
NACE MR0175, MR0103 (optional)
Fire safe valve design; according to API 6FA and ISO 10497 standards.
Fugitive Emission Test Certificate as per ISO15848.
Test Standard API 598

Operators
Manual Operated (Handwheel or Gearbox)
Motor Operated (Rotork, Auma or others)
Pneumatic Actuators
Hydraulic Actuators

Application
E500 Gate valves can be suitable for LNG, Water, LPG, Renewable, Fuel and Marine Offshore applications.

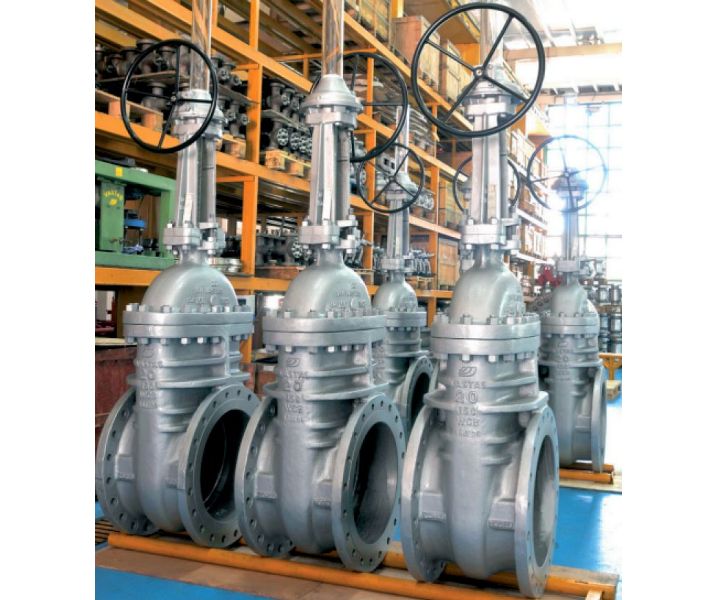

E500 - Cast Steel Wedge Gate Valve
After-sales, Service and Spares
Working with our European partners, Advastas are able to supply all client requirements for after-sales service and spares.

For further information contact us by email  , or by using the Contact Form
